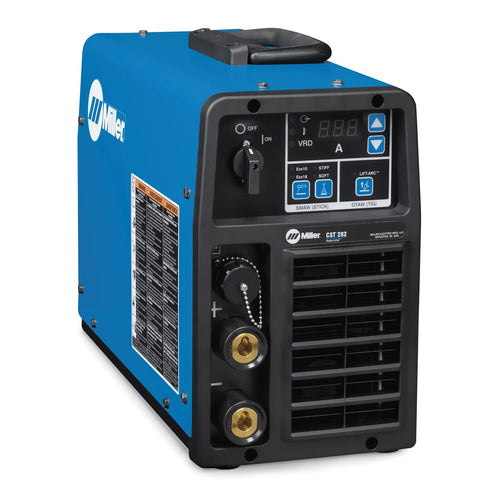

Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810
Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810

Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810

Vendor
Miller
Regular price
$4,170.00
Regular price
Sale price
$4,170.00
Unit price
per
Availability
Sold out

Miller CST 282 208-575V, Stick And Tig Welder Dinse 907810

Designed for welding pipe and plate in the construction industry -- this compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power on the jobsite.


Auto-Line™ Technology

Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.


Portable

Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model.

Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.


Lift-Arc™

Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.


Voltage Reducing Device

VRD technology reduces output voltage when the operator isn’t welding, lowering the potential hazard from inadvertent contact with the electrode during non-welding pauses.


Adaptive Hot Start™

Automatically makes starting stick electrodes easy without creating an inclusion.


4 and 8 Pack Racks

Rack mountable for protection, storage, and transportation of multiple power sources while using a single primary power cable.


PROCESSES

Stick (SMAW)

TIG DC (GTAW-DC)


GENERAL SPECIFICATIONS


Title CST™ 282 208-575V, Dinse
Industries Interests Construction

Infrastructure

Shipbuilding

Education / Training

Maintenance and Repair - Field Operations

Maintenance and Repair - In Plant

Mechanical Contracting

High Purity Processing

Weldable Metals Specialty Metals

Stainless Steel

Steel

Input Voltage 208 V

220/230/240 V

380/400/440 V

460/480 V

575 V

Input Phase 1- and 3-Phase
Input Hz 50/60 Hz
Current Type DC
Rated Output 280 A at 31.2 VDC, 35% duty cycle
Max Open Circuit Voltage 103 VDC
Portability Handle(s)
Weld Output Stick: 30–280 A, TIG: 5–280 A
Net Width 8 in
Net Height 13.5 in
Net Length 18.5 in
Net Weight

Additional shipping charges to VI, AK, HI.

34.6 lbs
