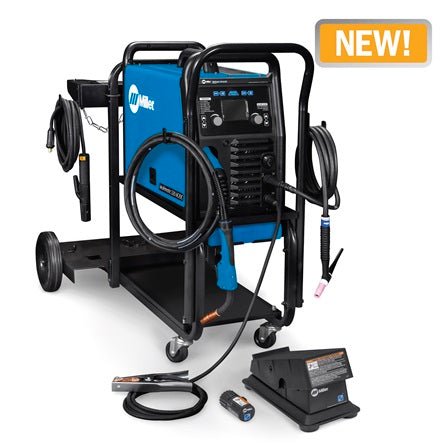

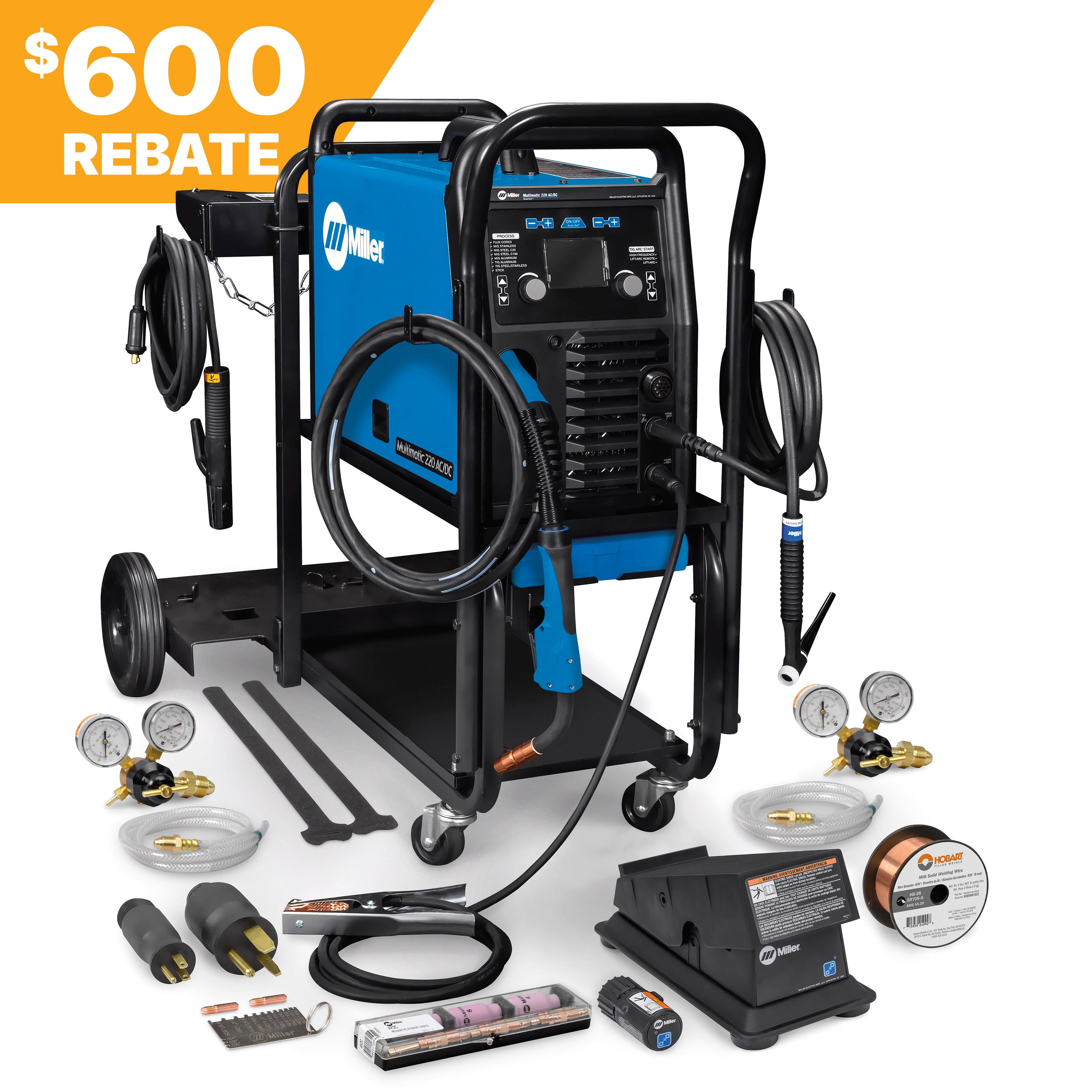

Miller Multimatic 220 AC/DC w/ Dual Cylinder Cart & Wireless Foot Pedal 951000104

Features:

• Pro-Set™ Feature Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
• 14-Pin Controlled Operator Alternatives: The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
• Multi-Voltage Plug (MVP) Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
• Dependable Arc Starts Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
• Weighing Only 56 Pounds The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
• Auto-Set™ Elite offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
• QuickTech™ Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time. Automatically switches to the right process. Just hit the trigger or the foot control and the machin automatically changes. Automatically recalls the settings from the last process used.
• All in One Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
• Generator Compatible: The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
• Heavy-duty construction with 8-inch rubber rear wheels.
• Includes front handles, cable holders and a plastic consumable box.
• Easily move gas cylinders no greater than 7 inches (178 mm) in diameter or 65 pounds (29.5 kg) in weight with your welder.
• Eliminating the hassle of cord management, you gain the freedom to move and weld with ease with wireless foot pedal

Not Included:

• Safety Equipment
• Spool gun for aluminum MIG welding
• Shielding gas


QuickTech™

• Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time.
• Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes.
• Automatically recalls the settings from the last process used.

Multi-Voltage Plug (MVP)

Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.

Auto-Set™ Elite

offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.

Pro-Set™ Feature

Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).

14-Pin Controlled Operator Alternatives

The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.

Weighing Only 56 Pounds

The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.

Dependable Arc Starts

Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.

Generator Compatible

The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.

6010 Stick Electrode Capability

Superior Stick arc performance even on the difficult-to-run electrodes like E6010.

Specifications:

• UPC: 715959711371
• Manufacturer Name: Miller Electric
• Shipping Length (in) Welder: 26.5
• Shipping Length (in) Cart: 36

• Shipping Length (in) Dual Rack: 22.25
• Shipping Width (in) Welder: 16.75

• Shipping Width (in) Cart: 35

• Shipping Width (in) Dual Rack: 17.5
• Shipping Height (in) Welder: 25
• Shipping Height (in) Cart: 18

• Shipping Height (in) Dual Rack: 6.75

• Shipping Weight (lbs) Welder: 92
• Shipping Weight (lbs) Cart: 35
• Shipping Weight (lbs) Dual Rack: 22

• Net Length (in): 84.75
• Net Width (in): 69.25
• Net Height (in): 49.75
• Net Weight (lbs): 149
• Application Class: Light fabrication, Maintenance and repair, Auto bodyPh
• Wire Size: .030 in. (0.8 mm) solid wire Quick Select™ drive roll for .024 in. (0.6 mm) or
  .030/.035 in. (0.8/0.9 mm) solid wire
  .030/.035 in. (0.8/0.9 mm) flux-cored wire

• Input Voltage: 240 V | Operating Range 120V or 240

• Weldable Metals: Steel, Stainless Steel, Aluminium

• Min Wire Feed Speed: (60)

• Max Wire Feed Speed: 600
• Recommended Accessory ID 1: AK-150MFC
• Recommended Accessory ID 2: WP1712RDI25
• Recommended Accessory ID 3: 194744
• Recommended Accessory ID 4: 219261
• Recommended Accessory ID 5: 219258
• Recommended Accessory ID 6: 300429

• Recommended Accessory ID 7: AK2C
• Recommended Accessory ID 8: 1770028
• Recommended Accessory ID 9: 151086
• Recommended Accessory ID 10: 300371
• Recommended Accessory ID 11: 43688
• Recommended Accessory ID 12: 219259
• Recommended Accessory ID 13: 301272
• Recommended Accessory ID 14: 301524
• Recommended Accessory ID 15: NS-MFLX
• Recommended Consumable ID 1: 186405

• Recommended Consumable ID 2: 261157

• Recommended Consumable ID 3: 199387

• Recommended Consumable ID 4: NS-M1200C

• Recommended Consumable ID 5: 186406

• Recommended Consumable ID 6: 199730

• Recommended Consumable ID 7: 199388

• Recommended Consumable ID 8: T-M030

• Recommended Consumable ID 9: 186413

• Recommended Consumable ID 10: LM1A-10

• Recommended Consumable ID 11: 50622

• Recommended Consumable ID 12: T-M035

• Recommended Consumable ID 13: T-M047

• Recommended Consumable ID 14: 186419

• Recommended Consumable ID 15: LM3A-10
• Recommended Consumable ID 16: LM2A-10
• Recommended Consumable ID 17: D-M100

• Recommended Consumable ID 18: T-M045
• Recommended Consumable ID 19: 202926
• Recommended Consumable ID 20: NS-M1200B

• Recommended Consumable ID 21: T-M023


Product Literature

AD/9.0 Multimatic 220 AC/DC
AD/9.0S-Multimatic-220 - Spanish

General Specifications:
