The Multimatic 220 AC/DC is the only machine in its class that offers users the ability to switch welding gas, polarity and welding process automatically while recalling the last MIG or TIG settings.

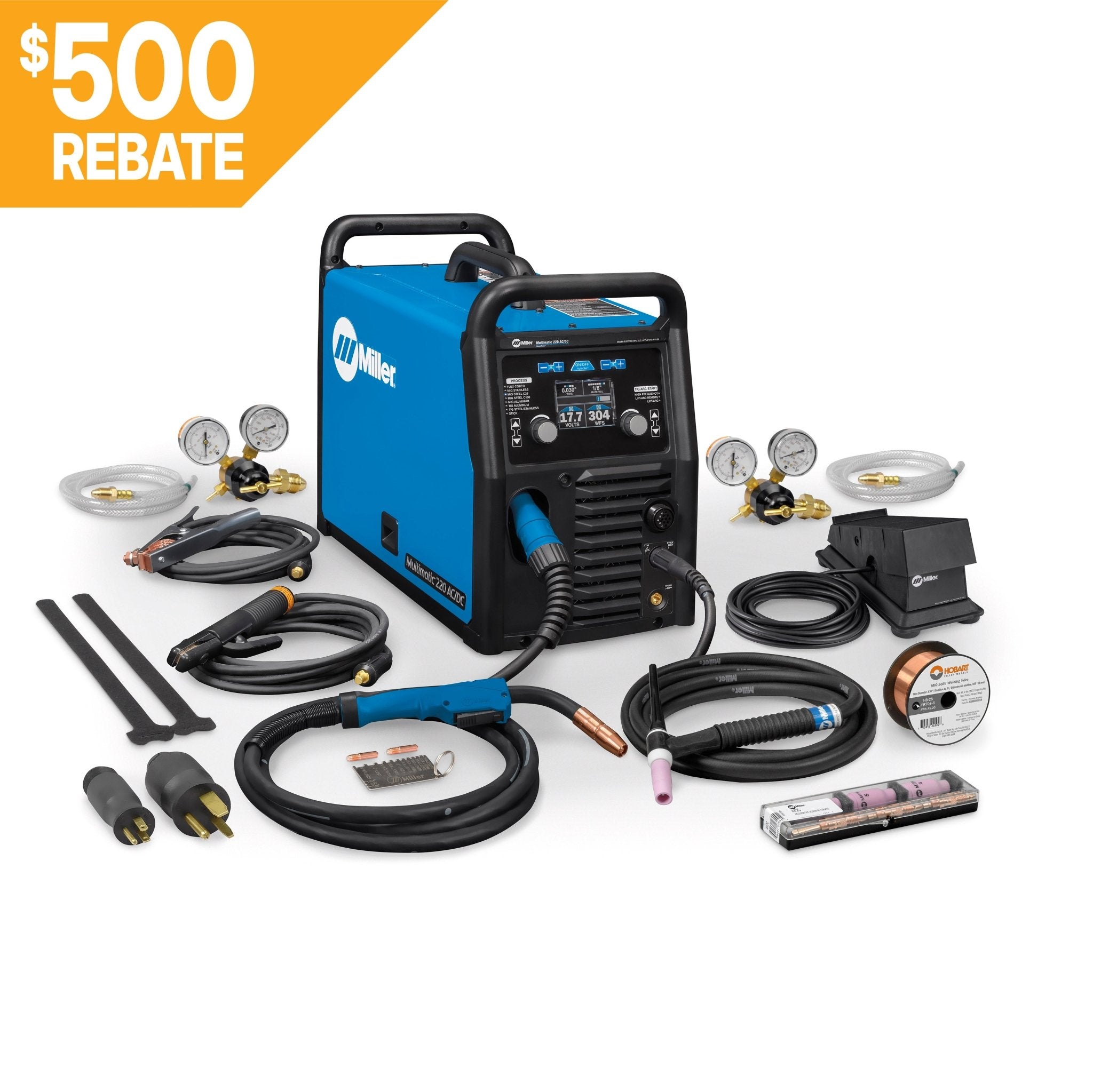

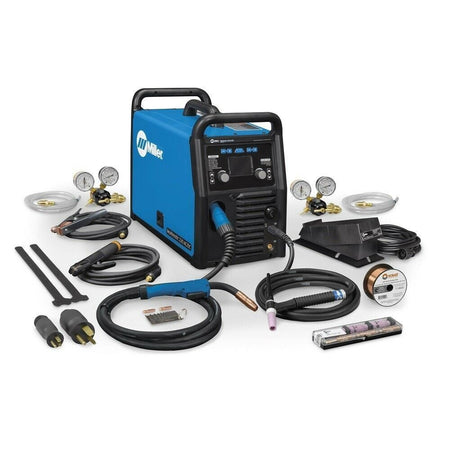

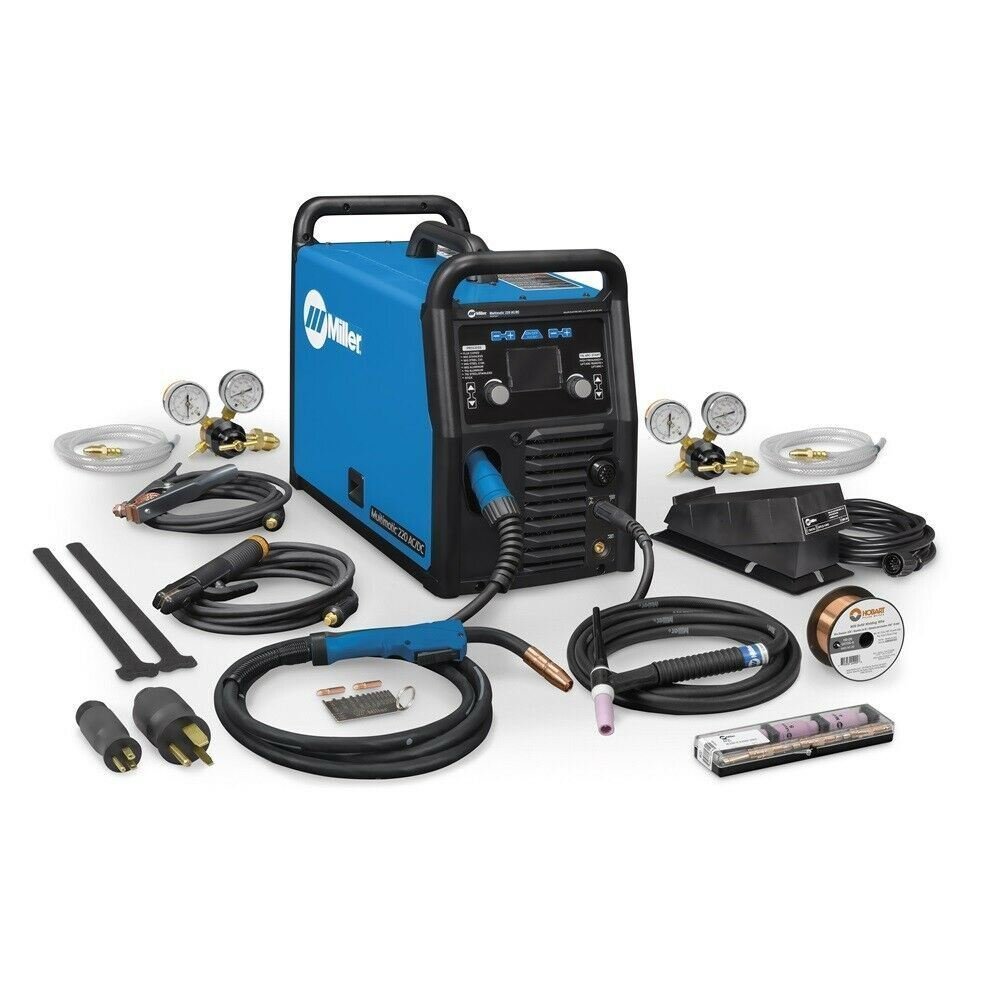

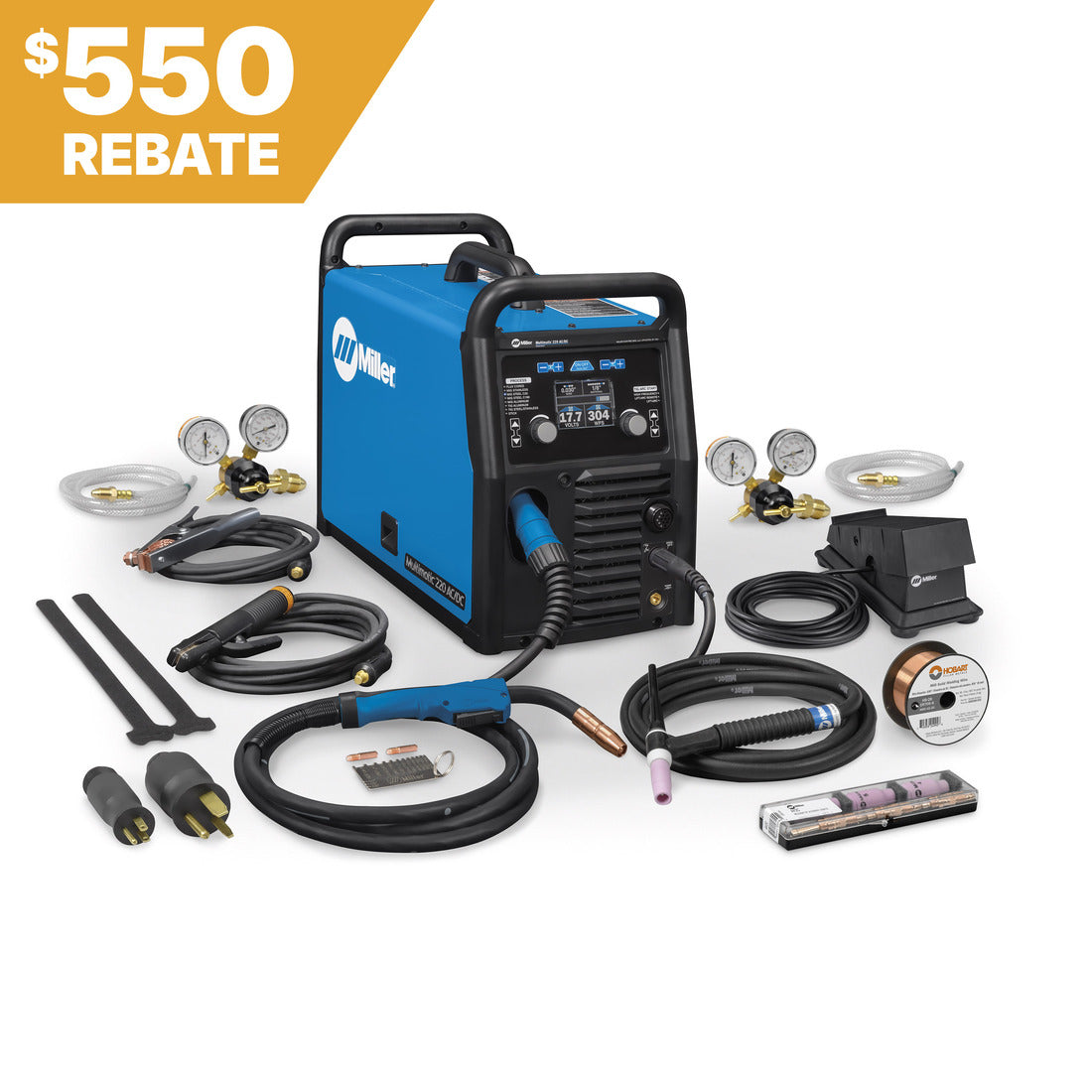

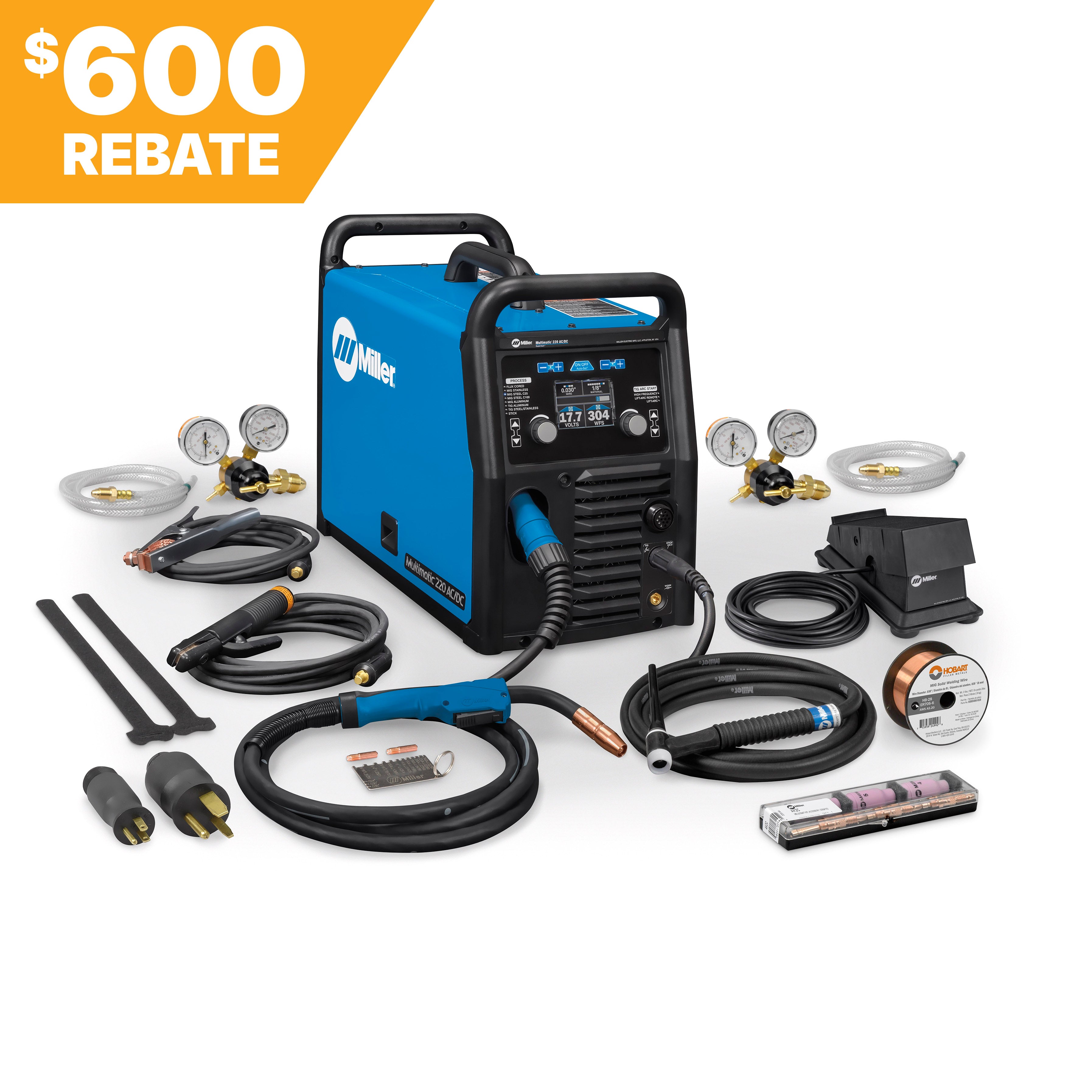

What's Included
Multimatic® 220 AC/DC6.5 ft (2 m) power cord and MVP™ adapter plugs for 120V and 240V10 ft MDX™-100 MIG Welding Gun13 ft (4 m) cable electrode holder and 25 mm Dinse-style connector12.5 ft (3.8 m) Weldcraft™ A-150 (WP-17) TIG torch with 25mm Dinse-style connectorRFCS-14 HD foot control with 20 ft (6 m) cord10 ft (3 m) work cable with clamp and 25 mm Dinse-style connector
Two Argon and AR/CO2 mix regulator/flow gauge with hosesSpool of Hobart® .030 in (0.8 mm) solid wireTwo contact tips for .030 in (0.8 mm) wireQuick Select™ drive roll for .024 in (0.6 mm) or .030/.035 in (0.8/0.9 mm) solid wire, and .030/.035 (0.8/0.9 mm) flux cored wireAK2C TIG torch accessory kitMaterial thickness gauge #229895Hook-and-loop cord wraps
All in One
Take on more projects with one machine that has MIG, Stick, AC and DC TIG.
QuickTech™
-
Automatically determines the polarity. MIG gun and TIG torch can stay connected at the same time.
-
Automatically switches to the right process. Just hit the trigger or the foot control and the machine automatically changes.
-
Automatically recalls the settings from the last process used.
Multi-Voltage Plug (MVP)
Allows for connection to 120- or 240-volt receptacles without tools. Choose the plug that fits the receptacle and connect it to the power cord.
Pro-Set™ Feature
Eliminates the guesswork when setting weld parameters. Simply adjust control until Pro-Set™ appears on the display and the number turns blue. Available for AC Balance and Frequency (TIG), DC Pulse (TIG), and DIG (Stick).
Learn More
14-Pin Controlled Operator Alternatives
The standard 14-pin connector lets you choose your control for a customized experience, whether it’s a foot control, fingertip control, or wireless foot control.
Weighing Only 56 Pounds
The Multimatic® 220 AC/DC can go where the work is, plus the added convenience of one machine versus two or more.
Dependable Arc Starts
Provides High-Frequency, non-contact arc starting to eliminate tungsten and material contamination time after time.
Generator Compatible
The Multimatic 220 will be able to operate and provide full output when powered by generators with 10000 Watt (10K) output or higher, such as a Miller Bobcat or Trailblazer series generator. Limited output will occur when used with smaller generators.
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Auto-Set™ Technology
Offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Processes
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Stick (SMAW)
TIG AC (GTAW-AC)
TIG DC (GTAW-DC)
TIG (GTAW)
Key Specifications
| Title |
Multimatic® 220 AC/DC |
| Applications |
Welding Education and Training
Welding Projects |
| Industries |
Racing
Farm and Ranch |
| Amperage |
30 A - 230 A |
| Material Thickness |
Mild Steel 24 ga. - 3/8 in. (MIG)
Mild Steel 16 ga. - 3/8 in. (Stick)
Mild Steel 24 ga. - 1/4 in. (TIG)
Aluminum 24 ga. - 1/4 in. (TIG)
Aluminum 18 ga. - 3/8 in (MIG) |
| Weldable Metals |
Aluminum
Stainless Steel
Steel |
| Current Type |
AC / DC |
| Max Open Circuit Voltage |
46 VDC |
| Wire Feed Speed |
1.5 m/min - 15.2 m/min
60 m/min - 600 m/min |
| Welding Mode |
CC/CV |
| Portability |
Handle(s)
Running Gear / Cart (Optional) |
| Weld Output |
CC / CV |
| Input Voltage |
110/115/120 V
220/230/240 V |
| Input Phase |
1-Phase |
| Input Hz |
50/60 Hz |
| Net Width |
11.25 in |
| Net Height |
17.5 in |
| Net Length |
21.5 in |
| Net Weight |
56 lbs |
| Warranty |
3 Years
Miller's True Blue Warranty
|
