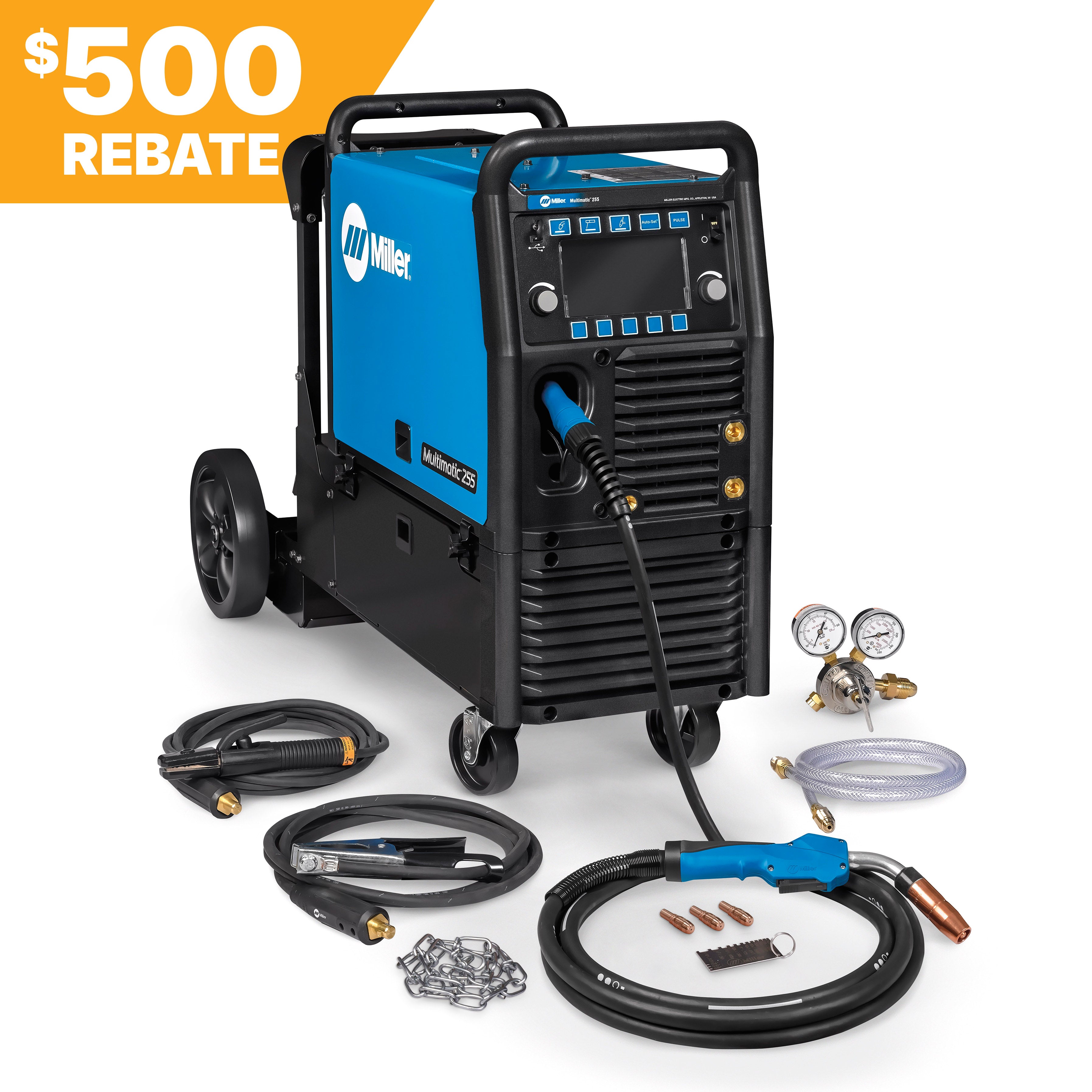

Miller Multimatic 255 Multiprocess Welder 907728 W Running Gear PN# 951767
Couldn't load pickup availability
Share This Product
Built for professionals in the MRO and light manufacturing/fabrication segments who want a smaller, versatile welder with intuitive setup to increase efficiencies and productivity. This inverter multiprocess welder is easy to use, will deliver versatility for faster uptime and performance, while allowing for portability.
What's Included
-
Power source with 10 ft. (3 m) power cord
-
15 ft. (4.5 m) 250-amp MDX™-250 MIG gun w/Bernard® AccuLock™ S consumables for .035/.045 in. (0.9/1.2 mm) wire
-
10 ft. (3 m) cable w/electrode holder & 50 mm Dinse-style connector
-
10 ft. (3 m) work cable w/clamp & 50 mm Dinse-style connector
-
Flow gauge regulator and gas hose for argon or AR/CO2 mix
-
Extra contact tips
-
.035/.045 in. (0.9/1.2 mm) reversible drive rolls
-
EZ-Latch™ single-cylinder running gear
-
Chain to secure gas cylinder
-
Material Thickness Gauge
Not Included
- Shielding gas (for welding with solid wire [GMAW])
- Flux cored drive rolls (for welding with flux cored wire [FCAW])
- Push-Pull Gun (for welding aluminum)
- Spool Gun (for welding aluminum)
- Welding wire
- Personal safety products (helmet, gloves)
Versatility
Multiprocess Capabilities of MIG, Pulsed MIG, Stick (6010), DC Lift Arc TIG and DC Pulsed TIG
Easy-to-understand interface
7-inch color LCD display ensures proper machine setup and parameter selection, reducing setup time and increasing weld time.
Pulsed MIG welding delivers higher quality
Lower heat input for less distortion on thin materials, less spatter minimizes post weld grinding and rework allowing more welding time. Perform welding applications that couldn’t be done in the past
Auto-Set™ Elite
offers predefined weld settings to increase ease of use and ensure that the job is done right for operators of all skill levels.
Program mode allows easy save and recall of favorite weld settings
Deliver more productivity, consistent quality by welders of all skill levels by using prequalified weld settings. Minimize supervisor need to intervene.
MDX-250 MIG Gun w/ AccuLock™ S consumables
AccuLock liner loads from the front and locks at the front and back to insure proper alignment for flawless wire feed path. New rubber overmold and ball -and-socket handle design improves grip and reduces welder fatigue. New Industrial Bernard AccuLock™ S contact tips provide superior Spray and Pulsed MIG arc performance.
Portability - Machine only weighs 84 lb
Weight is reduced by more than 50 percent compared to transformer welding machines
Optional EZ-Latch™ running gear
Operators no longer need to use lift truck to load machine and running gear into the truck. Latches secure machine to running gear. Simply loosen the latch retaining knob and rotate latches to disengage machine from running gear for easy portability
Generator Compatible
The Multimatic 255 will be able to operate and provide full output when powered by generators with 12000 Watt (12K) output or higher. Limited output will occur when used with smaller generators.
6010 Stick Electrode Capability
Superior Stick arc performance even on the difficult-to-run electrodes like E6010.
Processes
Stick (SMAW)
TIG DC (GTAW-DC)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Product Literature
DC/12.9 Multimatic 255 - English
DC/12.9S Multimatic 255 - Spanish
DC/12.9 Multimatic 255 - French
General Specifications
| Title | Miller Multimatic 255 Multiprocess Welder 907728 W Running Gear PN# 951767 |
|---|---|
| Industries Interests | Racing Farm and Ranch Auto Repair Manufacturing Construction and Fabrication |
| Amperage | 5 A - 350 A |
| Material Thickness | Mild Steel 22 ga. - 1/2 in. (MIG) Mild Steel 24 ga. - 3/8 in. (TIG) Mild Steel 16 ga. - 5/16 in. (Stick) Aluminum 18 ga. - 1/2 in. (MIG) |
| Weldable Metals | Aluminum Stainless Steel Steel |
| Input Voltage | 208 V 220/230/240 V 460/480 V 575 V |
| Input Phase | 1-Phase |
| Input Hz | 50/60 Hz |
| Input Amperage | 34.7 |
| Current Type | DC |
| Max Open Circuit Voltage | 81 VDC |
| Portability | Handle(s) Running Gear / Cart (Standard) |
| Weld Output | CC / CV |
| Applications | Aluminum Welding Fabrication Mobile Fabrication & MRO Welding Education and Training |
| Warranty | 3 Years Miller's True Blue Warranty |
