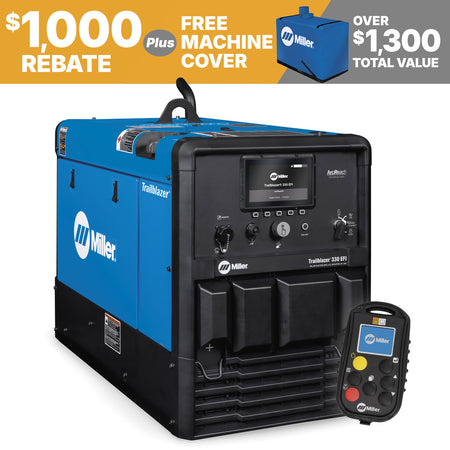

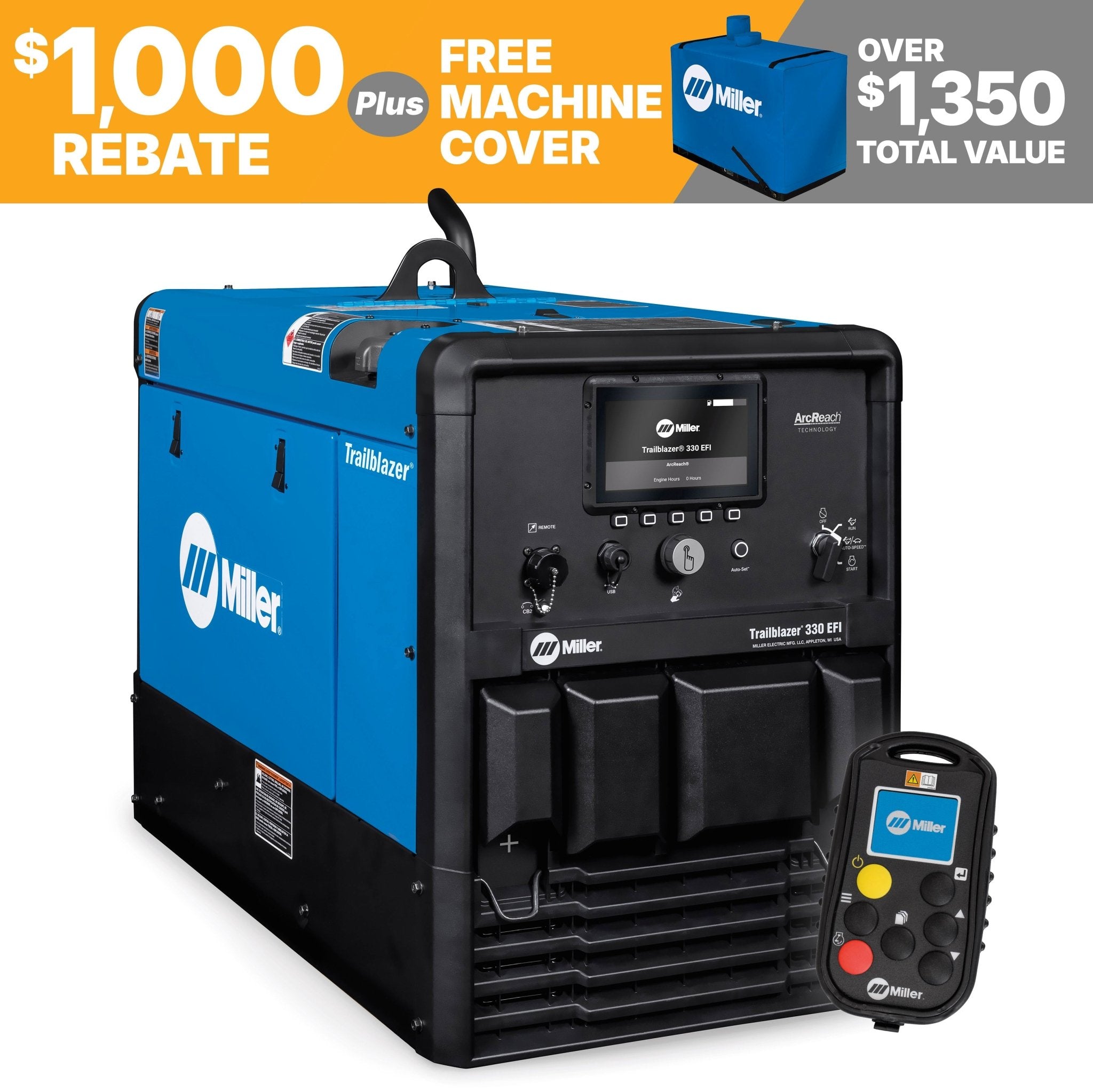

Miller Trailblazer 330 (Kohler) EFI w/Excel Power & Wireless Interface Control 907832002

In stock
SKU: 907832002
Regular price $11,115.00 USD
Reliable engine-driven welders with unbeatable arc performance, providing the smoothest, most stable arc in the industry. Trailblazer exclusive technologies — advanced Auto-Speed™ and optional Excel™ power — deliver superior runtimes, increase fuel efficiency, and improve engine-driven welder performance. No other compact machine in the 300-amp class delivers more welding power or more auxiliary power with better fuel efficiency and less noise — for productive, profitable, quieter jobsites.

Not Included

  • Weld leads

Easy to Use
Digital interface speeds machine setup and makes it less complicated.

Exceptional Arc Performance
Easy arc starts and less spatter.

Easy Maintenance
With its intuitive design, the daily maintenance of our Trailblazer engine-driven welder is fast and easy.

Easier mobility and uses less truck space and payload
Over 80 pounds lighter and 13 percent smaller than previous models.

Auto-Speed™ technology
Advanced Auto-Speed technology automatically adjusts engine speed to match weld and battery charge demands — reducing fuel consumption, maintenance costs and noise for a safer, more efficient jobsite.

Separate weld and auxiliary power
Full auxiliary power at any setting.

ArcReach® Technology
ArcReach technology uses existing weld cables to communicate process adjustment commands back to the engine-driven welder. With an ArcReach system, amperage & voltage are conveniently located at the operator's fingertips - not back at the power source.

Dynamic DIG™
Unlike conventional DIG that provides a preset amount of short-clearing current, Miller’s proprietary Dynamic DIG works on a time-based algorithm that automatically adjusts the amount of current required to clear a short. What does this mean? A smoother more consistent arc that can be tailored to match application, material, fit-up, and welder technique.

QuietPulse™
QuietPulse is activated by changing the waveshape for DC pulse welding, creating a slower, more fluid transition between the background and peak amperage to create the least possible audible noise.

Processes

  • Air Carbon Arc Cutting and Gouging (CAC-A)
  • Pulsed TIG (GTAW-P)
  • Flux Cored (FCAW)
  • Stick (SMAW)
  • MIG (GMAW)
  • TIG DC (GTAW-DC)

Product Literature

ED/4.76 Trailblazer 330 - English
ED/4.76S Trailblazer 330 - Spanish

General Specifications

Title Miller Trailblazer 330 (Kohler) EFI w/Excel Power & Wireless Interface Control 907832002
Industries Interests Construction and Fabrication
Heavy Equipment
Amperage 20 A - 330 A
Weldable Metals Aluminum
Stainless Steel
Steel
Rated Carbon Diameter 1/4 in (6.4 mm)
Current Type DC
Max Open Circuit Voltage 107 VDC
Engine Brand Kohler
Engine Idle Speed 2400 RPM
Engine Weld Speed Advanced Auto-Speed(TM) technology: Varies engine speed from 2,400-3,600 rpm to match weld output
Fuel Tank Size 11 Gallon
Fuel Type Gasoline
Horsepower 23 hp
Weld Output CC / CV
Rated Output CC/DC Stick/TIG 330 A at 30 V, 100% duty cycle, CV/DC MIG/FCAW 325 A at 30.25 V, 100% duty cycle
Single Phase Auxiliary Continuous Power 10500 W
Single Phase Auxiliary Peak Power 12000 W
Sound Rating 65 dB @ idle and 73.5 dB @ max weld
Applications Aluminum Welding
Fabrication
Mobile Fabrication & MRO
Structural Welding
Warranty 3 Years
Miller's True Blue Warranty
