This multiprocess power source delivers 400 amps at 60% duty cycle and includes ArcReach®, Auto-Line™, and dedicated weld processes (e.g., gouging, flux core, self-shielded, etc.).
Rated output:
Single Phase - 300 A at 32 VDC, 60% duty cycle
Three Phase - 400 A at 36 VDC, 60% duty cycle
Â
ArcReach Technology
Exclusive ArcReach technology uses the existing weld cables to communicate changes in voltage settings. With an ArcReach system, voltage and wire-feed-speed controls are conveniently located at the operator’s fingertips – not back at the power sourceÂ
Cable Length Compensation
Cable Length Compensation (CLCâ„¢) ensures that the voltage a weld operator sets is the voltage they get by automatically adjusting voltage based on weld cable length, even hundreds of feet away from the power source.
Improved Jobsite Safety
The chances of slip, trip and fall injuries are decreased because ArcReach technology allows weld operators to make parameter changes at the wire feeder or remote instead of having to travel through multistory and cluttered jobsites back to the power source.
Control Panel Lock Out
Inadvertent parameter changes by other jobsite workers can be avoided because connecting an ArcReach accessory to the power source automatically locks out the power source’s panel controls.
Auto-Process Selectâ„¢
Decrease the chance of an incorrect weld process being used because Auto-Process Select automatically sets the power source to the correct weld process based on the polarity applied to the weld accessory.
Auto-Lineâ„¢ Technology
Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required.Â
ArcReach Heater Compatibility
Take charge of your field preheat and bakeout applications up to 600 degrees Fahrenheit (315°C). This system uses induction heating to generate heat in workpieces, so welders can do their own preheating quickly and safely. A part of the ArcReach technology platform, the ArcReach Heater is an accessory for select ArcReach welding power sources. Â
Adjust While Welding
Weld operators have more control and can Adjust While Welding (AWW™) to make fast, easy weld parameter changes at the wire feeder or remote — even while the arc is on. Only Miller offers this advanced solution.
Processes:
Air Carbon Arc Cutting and Gouging (CAC-A)
Flux Cored (FCAW)
MIG (GMAW)
Multiprocess
Pulsed MIG (GMAW-P)
Regulated Metal Deposition (RMD)
TIG (GTAW)
Technologies
ArcReach
Auto-Line
Key Specifications
| Title |

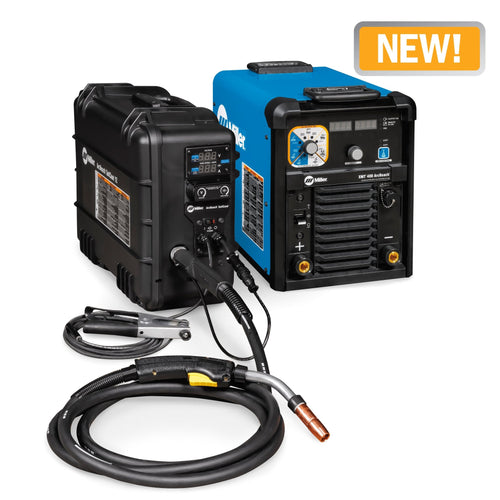

XMT® 400 ArcReach®, Tweco®, ArcReach® SuitCase® 12, Bernard™ BTB 300 A Gun Pkg |
| Applications |
Boat/Yacht
Fabrication
Field Welding
Industrial Welding
Structural Welding |
| Industries |
Construction and Fabrication
Heavy Equipment
Shipbuilding |
| Amperage |
15 A - 425 A |
| Weldable Metals |
Aluminum
Specialty Metals
Stainless Steel
Steel |
| Rated Carbon Diameter |
5/16 in (7.9 mm) |
| Current Type |
DC |
| Max Open Circuit Voltage |
91 VDC |
| Metal Type |
Most Metals |
| Voltage Min |
10 VDC |
| Voltage Max |
38 VDC |
| Welding Mode |
CC/CV |
| Portability |
Handle(s) |
| Input Voltage |
208 V
208/230/460 V
220/208 V
220/230/240 V
380/400 V
380/400/440 V
460 V
460/480 V
575 V
575/600 V |
| Input Phase |
1- and 3-Phase |
| Input Hz |
50/60 Hz |
| Warranty |
Miller's True Blue Warranty |
